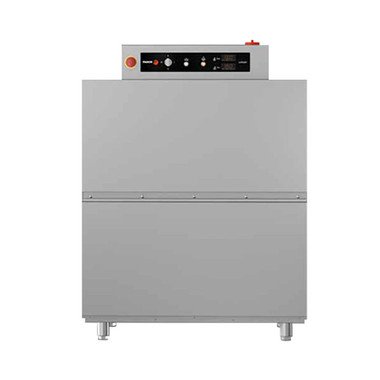

Electric Conveyor Dishwasher Left Entrance – CCO-120ICW

Description

Electric Conveyor Dishwasher Left Entrance – CCO-120ICW

Electric Conveyor Dishwasher Left Entrance – CCO-120ICW

Key Features

• All the main parts are manufactured in AISI-304 anti-corrosion stainless steel: tanks, washing and rinsing arms, jets, doors, basket conveyance system, boiler, and metal tubes.
• Upwards-opening double panel door.
• Tank tray filters made of AISI-304 stainless steel, easy to access and remove for cleaning and access to the tank.
• Safety filter for pump suction.
• Rinsing boiler with heat insulation.
• Easy access for installation. Electrovalve is located on one side (no need to remove panels to connect the machine).
• Electrical panel designed for easy connection of doses for liquid and solid detergents, rinse aid, limit switches, and supplementary emergency stop button.
• Washing arms easily removable as a set, for cleaning, with a plug on each branch providing access for cleaning inside.
• Rinse jets are easily dismountable and removable.
• System of electronic regulation of speeds using frequency shifter.
• Configurable electronic temperature control:
  – Wash (50 – 65 °C)
  – Rinse (70 – 85 °C)
• Guarantor of rinse at 85 °C.
• Pressure regulator for flow control.
• Emergency stop button incorporated.
• Extra anti-entrapment protection system at the entrance, mounted on the AS-260 splash guard supplement (optional).
• Open door blocking system.
• IPX4 protection system.
• System for detection of blockage of conveyor carriage and automatic reverse function.
• High-power washing system with 4 upper and 4 lower washing branches.
• 3 washing programs: deep, medium, and high capacity.
• Double effect rinse.
• Energy-saving system: reduces consumption by halting the operation of the pumps, and bypassing the heating of the rinse to standby mode (70 °C).
• Auto-timer which deactivates the conveyor motor after a pre-set period of inactivity (10 minutes).
• Energy saving system in the wash: the wash does not start up until it
  detects the passage of the basket.
• Rinse saving system. The rinse stops when the basket has left, saving water and energy.
• Model prepared for the entrance of baskets from the left side.
• Model prepared for a cold water connection inlet (Inlet temperature < 50ºC)
• Equipment included:
  2 base baskets, CT-10
  2 baskets for plates CP-16/18, 1 basket for
  glasses CV-16/105, 1 basket for cutlery CT-10 R
  Limit switch included.

2 Years Parts and Labour Warranty
